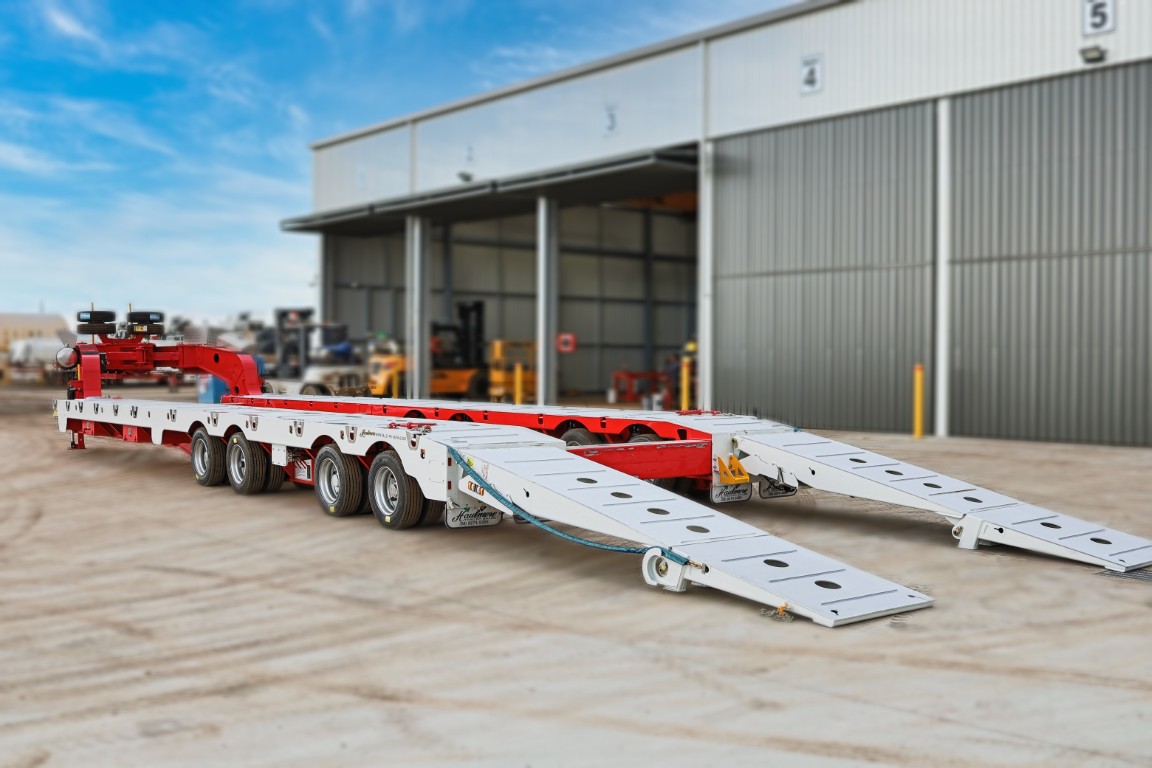

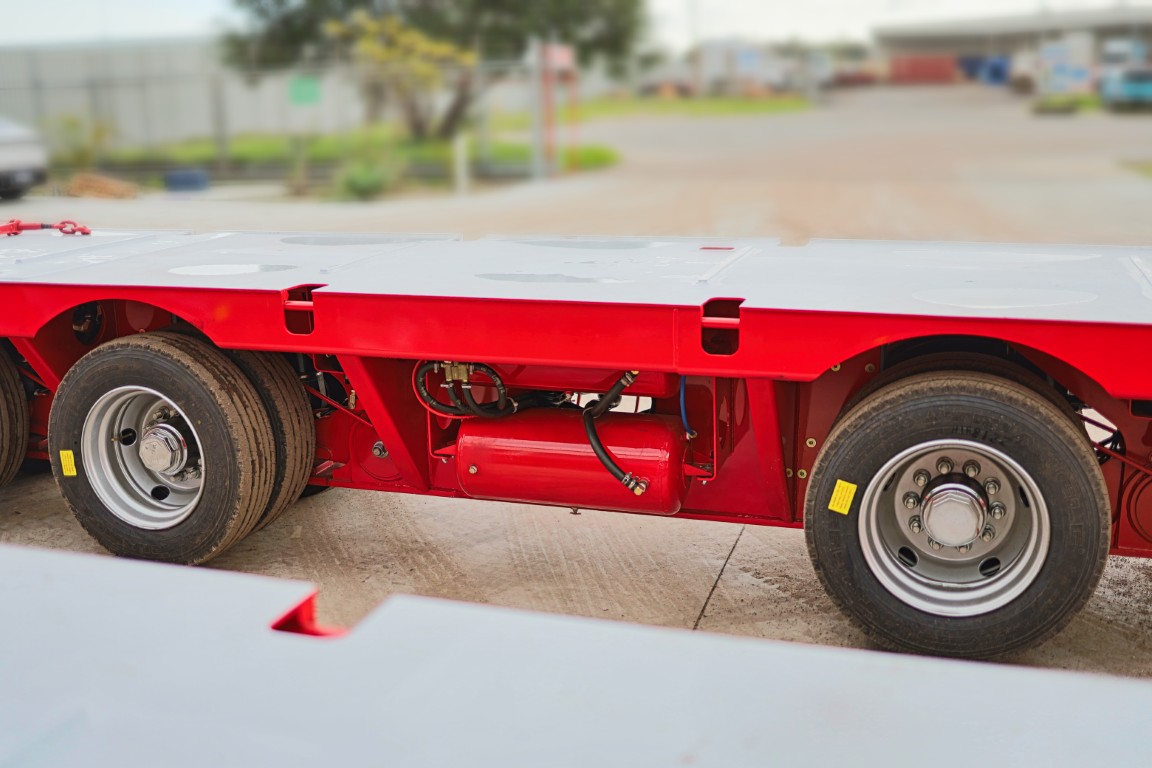

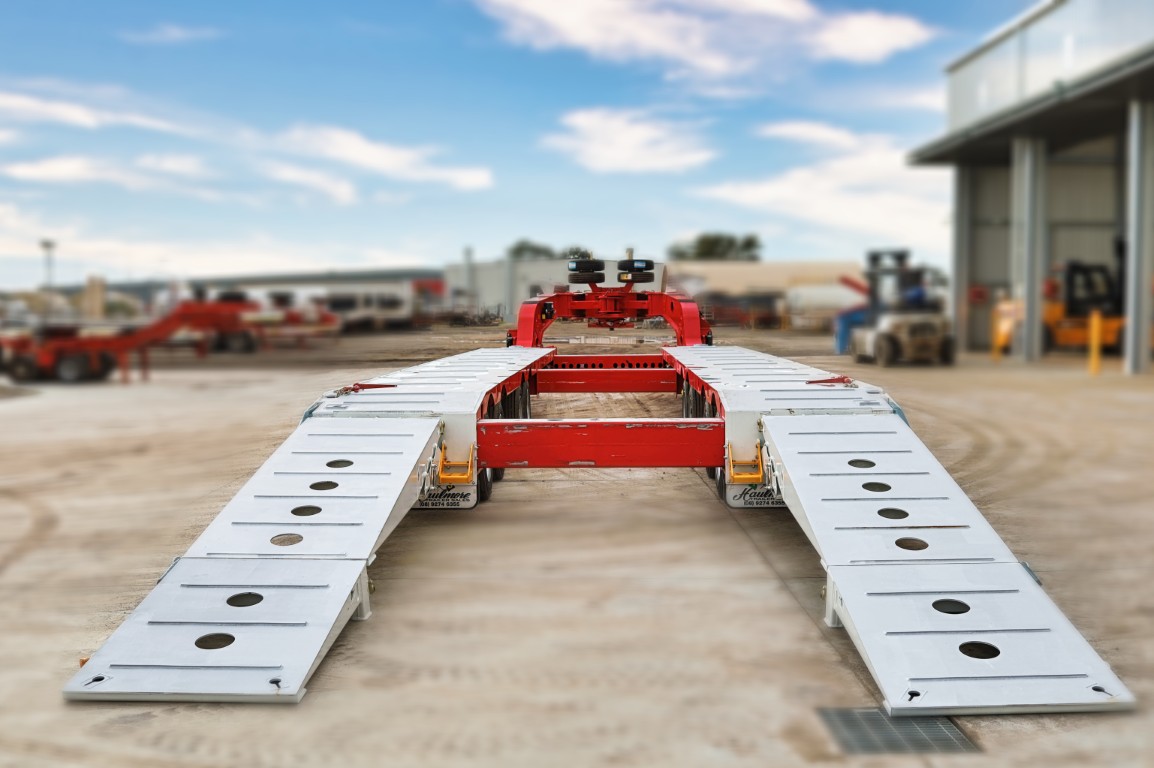

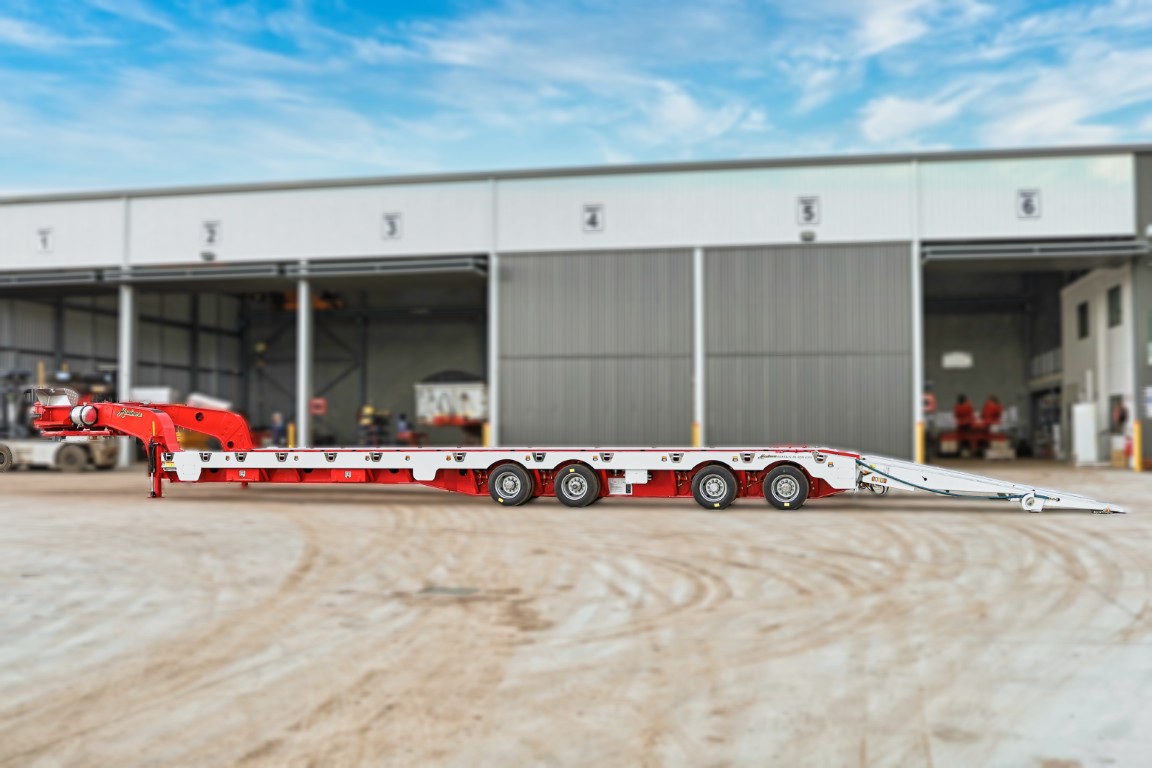

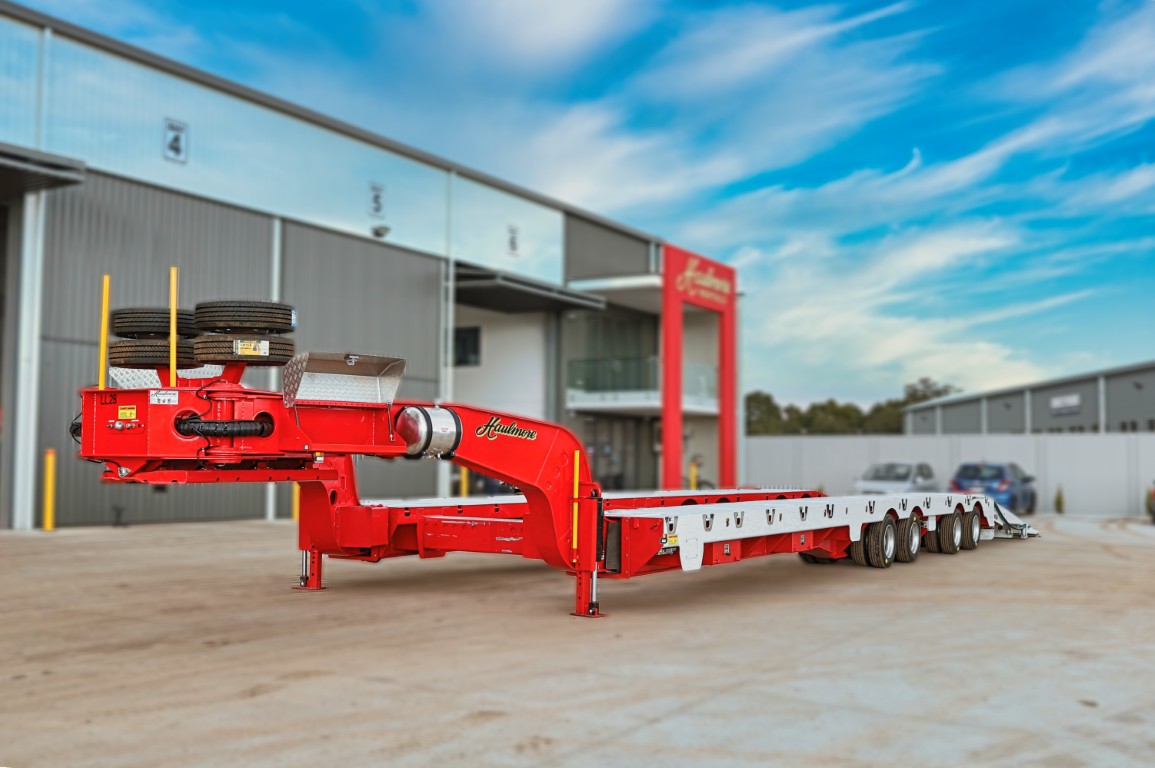

2026 QUAD 4 ROWS OF 8 FULL AXLE WIDENING LOW LOADER WITH HYDRAULIC SUSPENSION
Quad full-axle widening low loader, 120,000 kg design rating, hydraulic suspension
Low Loaders 120,000kgs 130,000kgs 70,000kgs 21,260kgs Pressure gauges fitted to register axle loads Double acting hydraulic Fitted to suit 2x 20’-0” or 1x 40’-0” 60 litre aluminium fitted To comply with ADR 4 only on bull worn 5 fitted, two dunnage trays Both sides To all bare metal surfaces Primed and painted with two pack enamel Red and white coamings Painted in your fleet colours QUAD FULL SUSPENSION WIDENER – LOW LOADER – PRICE ON APPLICATION 43 kgs 12125mm CLOSED – 2500mm – OPEN – 3500mm approx – 15,500 kgs approx. 34000kgs, subject to correct weight distribution Bi-Fold Ramps Stress Relieved Skid Plate Two King Pin Positions, Removable King Pin Four Tyre Carriers, Two on Gooseneck-Two Under Frame Seven Tool Boxes Lombardini Diesel Power Pack Revolving Lamp Oversize Signs Pressure/Load Sensing Gauges Hydraulic Raise Axle to Front and Rear Axles Access Steps Both Sides at the Front of the Deck
Walk the Yard
Live 3D scan of our Hazelmere yard — where the fleet is built, serviced and painted.
Dimensions
| Deck length | 13 metres |
|---|---|
| Deck width | Closed 2700mm / Open 4500mm |
| Deck height | 950mm |
Running Gear
| Stud count | 10 stud |
|---|---|
| PCD | 225 PCD |
| Axle make | K HITCH |
| Axle configuration | quad (4 rows of 8) |
| Axle count | 4 |
Braking & Electrical
| Brake system | Drum brake |
|---|
Compliance
| Brake/ADR compliance | ADR38/05 |
|---|
- "Details" section on source repeats a different trailer's spec (design rating 43 kgs, deck length 12125mm) conflicting with the main Specification (design rating 120,000kgs, deck length 13m) — main Specification values used
Key features
- 120,000kgs
- 130,000kgs
- 70,000kgs
- 21,260kgs
- Fitted to suit 2x 20’-0” or 1x 40’-0”
- 60 litre aluminium fitted
- 4 only on bull worn
- 5 fitted, two dunnage trays
Built for
- Heavy machinery transport
- Oversize plant haulage
