New For sale

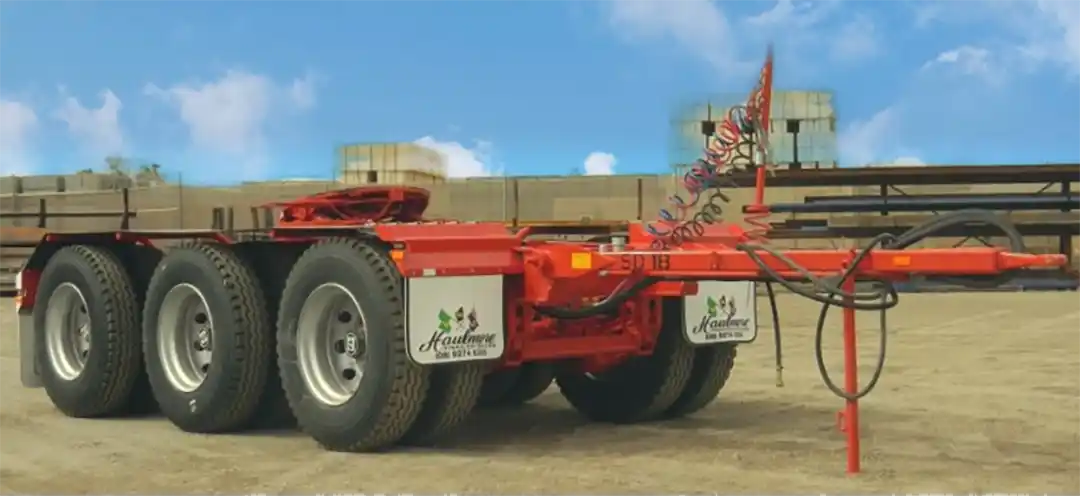

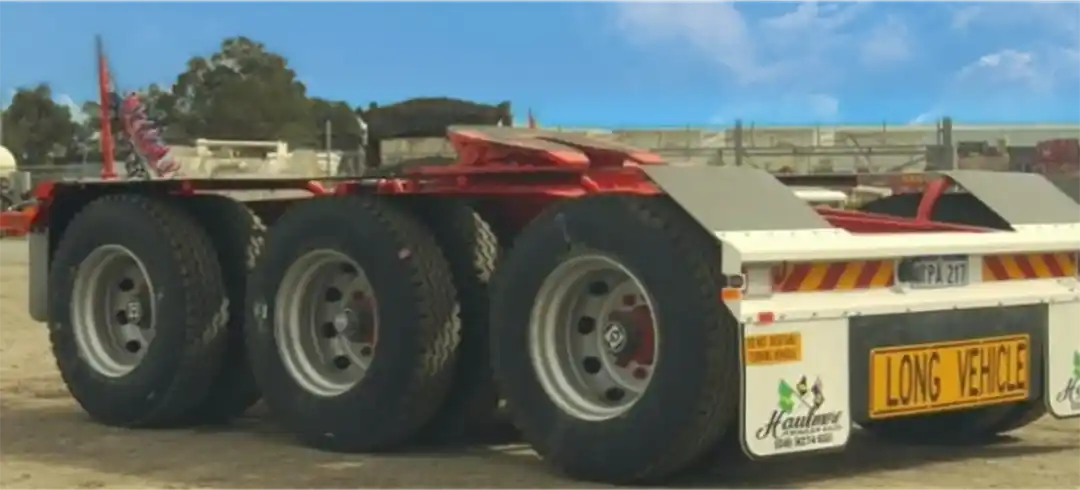

2024 Haulmore Tri Axle Road Train Dolly
Tri-axle road train converter dolly rated to 23,500 kg AGG
Dollies Build sheet · as listed
Buy the 2024 Haulmore Tri-Axle Road Train Dolly. Built for tough loads, offering exceptional durability and performance for heavy transport needs. Haulmore New Tri Road Train Dolly PREMIUM QUALITY
Walk the Yard
Live 3D scan of our Hazelmere yard — where the fleet is built, serviced and painted.
Mass & Ratings
| Design rating | 23,500 kg |
|---|---|
| AGG trailer mass | 23,500 kg |
| Tare weight | 4,000 kg |
| Payload | 19,500 kg |
Running Gear
| Tyres | Twelve (12) 11R 22.5 tyres |
|---|---|
| Stud count | 10 stud |
| PCD | 285 PCD |
| Axle make | K HITCH |
| Suspension | Tri mechanical 9 leaf over slung |
| Leaf count | 9 leaf |
| Suspension spread | 2.7 metre spread |
| Axle configuration | tri-axle |
| Axle count | 3 |
Braking & Electrical
| Brake system | Drum brake |
|---|---|
| ABS/EBS | EBS |
| Electrical | Multi-voltage |
| Lighting | HELLA LED |
Securing & Accessories
| Drawbar | Hinged type 'A' frame |
|---|---|
| Turntable | 90mm |
Key features
- Haulmore New Tri Road Train Dolly, PRICE: PRICE ON APPLICATION
- PREMIUM QUALITY
Built for
- Road train conversion
- Heavy haulage coupling
Want the numbers?
Send us the brief on the 2024 Haulmore Tri Axle Road Train Dolly — we’ll confirm spec, availability and price.
