New For sale

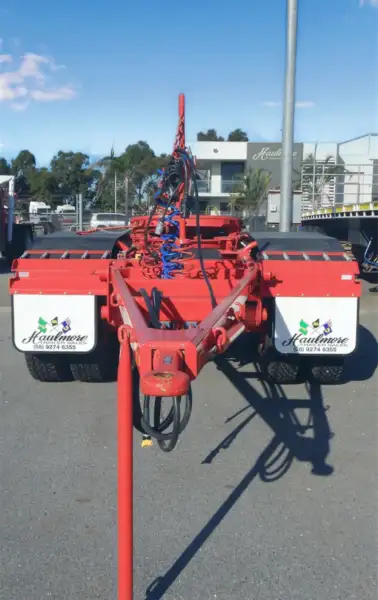

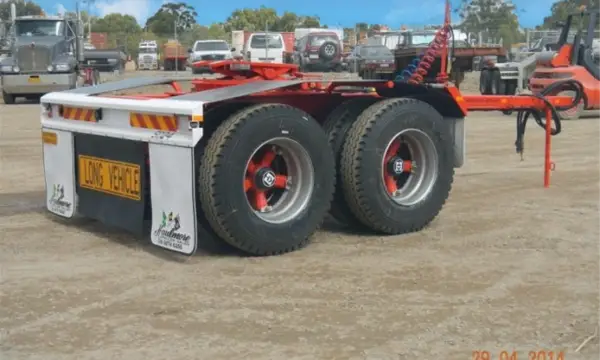

2024 Haulmore Tandem Road Train Dolly
Tandem road train converter dolly rated to 20,000 kg AGG
Dollies Build sheet · as listed
K HITCH DRUM AXLE BRAKES K HITCH 9 LEAF SUSPENSION OVERSLUNG LED LIGHTS & WIRING IN CONDUIT FUWA DOUBLE BALL RACE & HEAVY DUTY FUWA 90mm TURNTABLE CENTRALISED DEGREASING TO BALL RACE
Walk the Yard
Live 3D scan of our Hazelmere yard — where the fleet is built, serviced and painted.
Mass & Ratings
| Design rating | 20,000 kg |
|---|---|
| AGG trailer mass | 20,000 kg |
| Tare weight | 2,800 kg |
| Payload | 17,200 kg |
Running Gear
| Tyres | Eight (8) 11R 22.5 tyres |
|---|---|
| Stud count | 10 stud |
| PCD | 285 PCD |
| Axle make | K HITCH |
| Suspension | Tandem mechanical 9 leaf over slung |
| Leaf count | 9 leaf |
| Axle configuration | tandem |
| Axle count | 2 |
Braking & Electrical
| Brake system | Drum brake |
|---|---|
| ABS/EBS | EBS |
| Electrical | Multi-voltage |
| Lighting | HELLA LED |
Securing & Accessories
| Drawbar | Hinged type 'A' frame |
|---|---|
| Turntable | 90mm |
Key features
- K HITCH DRUM AXLE BRAKES
- K HITCH 9 LEAF SUSPENSION OVERSLUNG
- LED LIGHTS & WIRING IN CONDUIT
- FUWA DOUBLE BALL RACE & HEAVY DUTY FUWA 90mm TURNTABLE
- CENTRALISED DEGREASING TO BALL RACE
Built for
- Road train conversion
- Heavy haulage coupling
Want the numbers?
Send us the brief on the 2024 Haulmore Tandem Road Train Dolly — we’ll confirm spec, availability and price.
