2024 Haulmore ‘Super Duty’ Tri Axle Side Tipper
'Super Duty' tri-axle side tipper with 4 mm Hardox body, 21 m³
Side Tippers Build sheet · as listed
Haulmore “SUPER DUTY” Tri Axle Side Tipping Trailer Body constructed from Hardox Grade 450 High tensile Swedish Steel High Capacity Tipping Rams 150mm Diameter Full length door (piano) hinge Safety lock-on door opening Double Sheer brackets on door hinge Four body floor support beams Dual Tyre carrier Heavy duty landing legs
Walk the Yard
Live 3D scan of our Hazelmere yard — where the fleet is built, serviced and painted.
Mass & Ratings
| Design rating | 47,000 kg |
|---|---|
| Tare weight | 9,100 kg |
Dimensions
| Overall width | 2900mm overall |
|---|---|
| Height of sides | 1000mm |
| Body length (inside) | 9000mm inside |
Running Gear
| Tyres | Thirteen (13) only |
|---|---|
| Stud count | 10 stud |
| Suspension | 9 leaf 2.7m spread |
| Leaf count | 9 leaf |
| Suspension spread | 2.7m spread |
| Axle configuration | tri-axle |
| Axle count | 3 |
Braking & Electrical
| Brake system | Drum brake |
|---|---|
| ABS/EBS | EBS |
| Electrical | Multi-voltage |
| Lighting | LED |
Deck & Body
| Body material | 4mm Hardox GR450 Swedish high tensile plate |
|---|
Capacity
| Body volume | 21 cubic metres |
|---|
Securing & Accessories
| King pin | 90mm |
|---|---|
| Hitch type | ring feeder |
Key features
- Grade 450 High tensile Swedish Steel

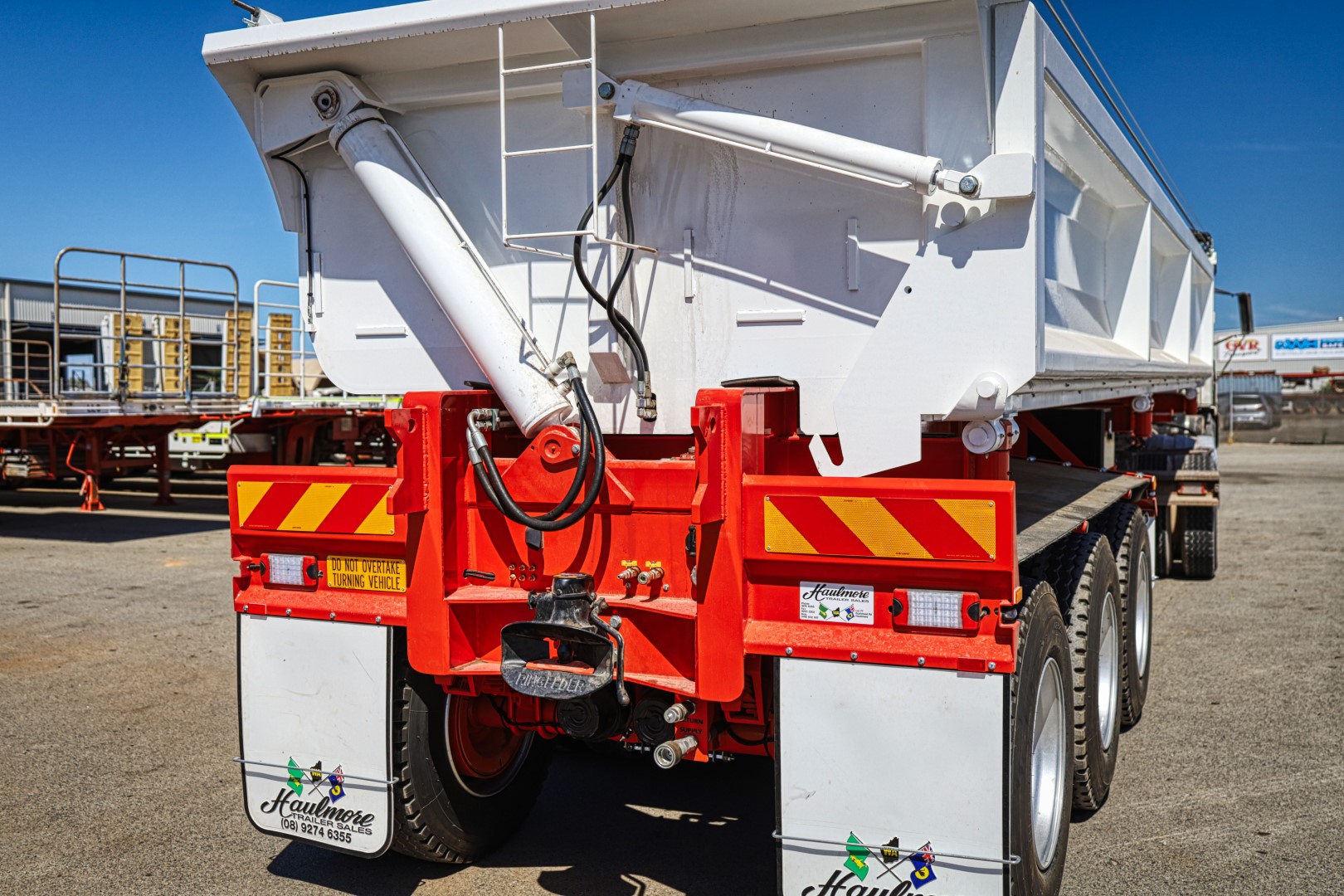

- High Capacity Tipping Rams 150mm Diameter
- Dual Tyre carrier
Built for
- Bulk material haulage
- Mining
- Aggregate cartage
